Dynabolt – ITW Proline
Dynabolt
0

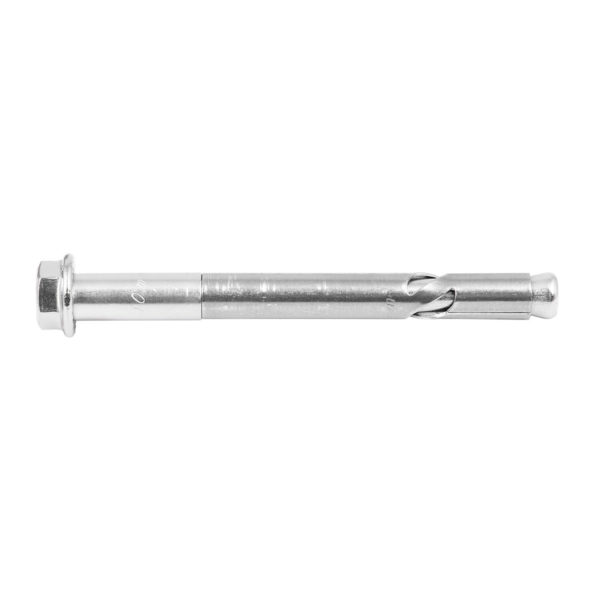

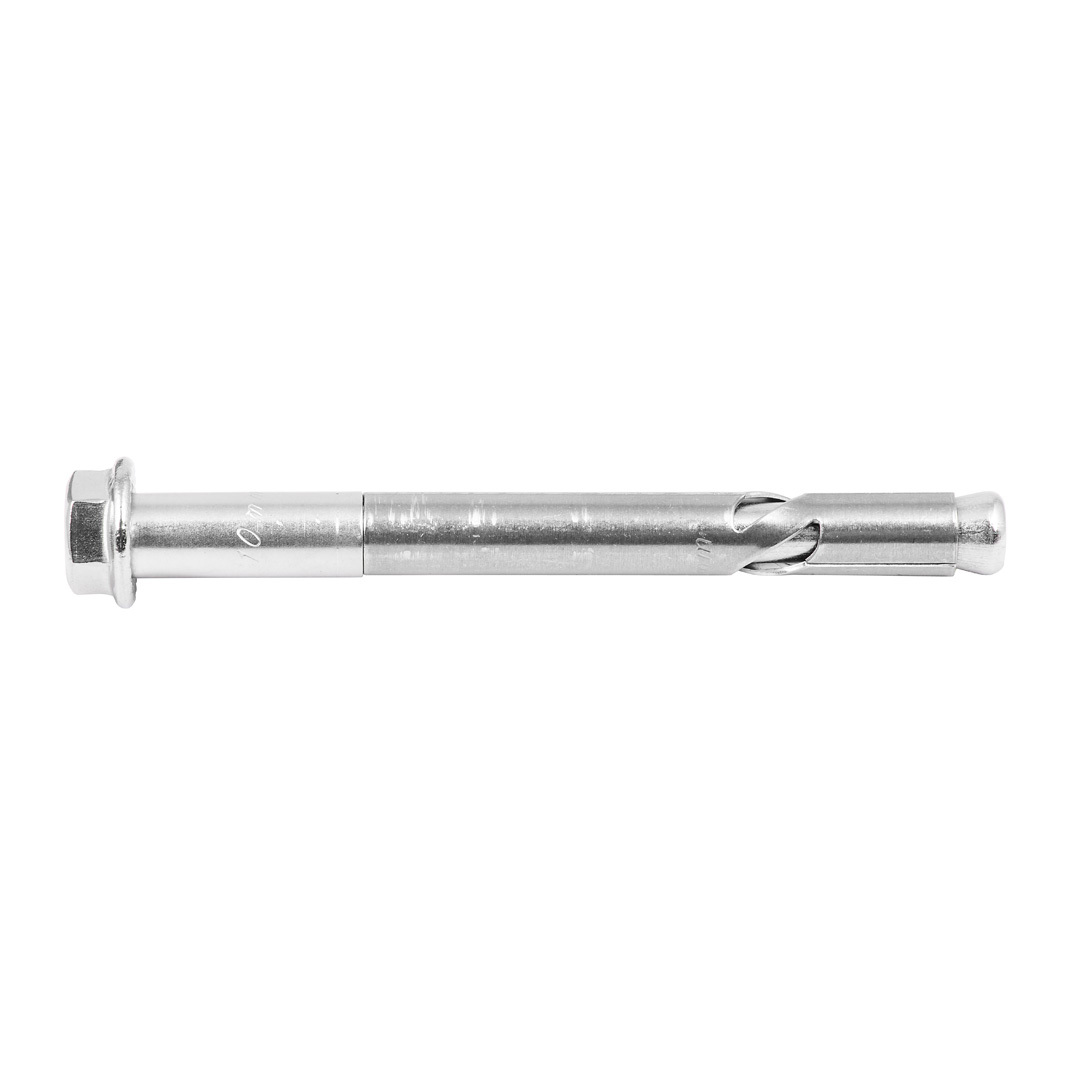

The Ramset™ DynaBolt™ Plus Sleeve Anchor is a torque-controlled expansion anchor with an integrated pull-down section, designed for medium-duty anchoring of timber and steel fixtures to concrete, brick or block. It's available in a variety of different head styles and finishes.

Contact your preferred store for product availability
Specifications
Image SKU Action
DP10100 10mm 100mm Hex Head Gold Passivated 10mm BOX 25 Add to wishlist
DP10075F 10mm 75mm Countersunk Gold Passivated 10mm BOX 50 Add to wishlist
DP08085F 8mm 85mm Countersunk Gold Passivated 8mm BOX 50 Add to wishlist
DP08090 8mm 90mm Hex Head Gold Passivated 8mm BOX 50 Add to wishlist
DP10040 10mm 40mm Hex Head Gold Passivated 10mm BOX 50 Add to wishlist
DP10050 10mm 50mm Hex Head Gold Passivated 10mm BOX 50 Add to wishlist
DP10050GH 10mm 50mm Hex Head Galvanised 10mm BOX 50 Add to wishlist
DP10050SS 10mm 50mm Hex Head Stainless Steel 10mm BOX 50 Add to wishlist
DP10075 10mm 75mm Hex Head Gold Passivated 10mm BOX 50 Add to wishlist
DP10075GH 10mm 75mm Hex Head Galvanised 10mm BOX 50 Add to wishlist
DP10075SS 10mm 75mm Hex Head Stainless Steel 10mm BOX 50 Add to wishlist
DP10040GH 10mm 40mm Hex Head Galvanised 10mm BOX 50 Add to wishlist
465382 8mm 90mm Hex Head Gold Passivated 8mm Card 2 Add to wishlist
DP12060SS 12mm 60mm Hex Head Stainless Steel 12mm BOX 25 Add to wishlist
DP16065 16mm 65mm Hex Head Gold Passivated 16mm BOX 20 Add to wishlist
DP16065GH 16mm 65mm Hex Head Galvanised 16mm BOX 20 Add to wishlist
DP16110GH 16mm 110mm Hex Head Galvanised 16mm BOX 10 Add to wishlist
DP16140 16mm 140mm Hex Head Gold Passivated 16mm BOX 10 Add to wishlist
DP20115 20mm 115mm Hex Head Gold Passivated 20mm BOX 5 Add to wishlist
D08045K 8mm 45mm Hook Gold Passivated 8mm BOX 100 Add to wishlist
D08045X 8mm 45mm Eye Bolt Gold Passivated 8mm BOX 100 Add to wishlist
D6026 6mm 26mm Hex Head Gold Passivated 6mm BOX 100 Add to wishlist
D6034F 6mm 34mm Countersunk Gold Passivated 6mm BOX 100 Add to wishlist
DP06040 6mm 40mm Hex Head Gold Passivated 6mm BOX 100 Add to wishlist
DP06060 6mm 60mm Hex Head Gold Passivated 6mm BOX 100 Add to wishlist
DP06060F 6mm 60mm Countersunk Gold Passivated 6mm BOX 100 Add to wishlist
DP06075F 6mm 75mm Countersunk Gold Passivated 6mm BOX 100 Add to wishlist
DP06100F 6mm 100mm Countersunk Gold Passivated 6mm BOX 100 Add to wishlist
DP08040 8mm 40mm Hex Head Gold Passivated 8mm BOX 100 Add to wishlist
DP08040SS 8mm 40mm Hex Head Stainless Steel 8mm BOX 100 Add to wishlist
DP08060F 8mm 60mm Countersunk Gold Passivated 8mm BOX 100 Add to wishlist
DP08065 8mm 65mm Hex Head Gold Passivated 8mm BOX 50 Add to wishlist
DP10100F 10mm 100mm Countersunk Gold Passivated 10mm BOX 50 Add to wishlist
DP10100GH 10mm 100mm Hex Head Galvanised 10mm BOX 25 Add to wishlist
DP10100SS 10mm 100mm Hex Head Stainless Steel 10mm BOX 25 Add to wishlist
DP12060 12mm 60mm Hex Head Gold Passivated 12mm BOX 25 Add to wishlist
DP12060GH 12mm 60mm Hex Head Galvanised 12mm BOX 25 Add to wishlist
DP12070 12mm 70mm Hex Head Gold Passivated 12mm BOX 25 Add to wishlist
DP12070GH 12mm 70mm Hex Head Galvanised 12mm BOX 25 Add to wishlist
DP12070SS 12mm 70mm Hex Head Stainless Steel 12mm BOX 25 Add to wishlist
DP12100 12mm 100mm Hex Head Gold Passivated 12mm BOX 20 Add to wishlist
DP12100GH 12mm 100mm Hex Head Galvanised 12mm BOX 20 Add to wishlist
DP12125 12mm 125mm Hex Head Gold Passivated 12mm BOX 20 Add to wishlist
DP12125GH 12mm 125mm Hex Head Galvanised 12mm BOX 20 Add to wishlist
DP16110 16mm 110mm Hex Head Gold Passivated 16mm BOX 10 Add to wishlist
DP20080 20mm 80mm Hex Head Gold Passivated 20mm BOX 10 Add to wishlist
DP20160 20mm 160mm Hex Head Gold Passivated 20mm BOX 5 Add to wishlist
DP10125 10mm 125mm Hex Head Gold Passivated 10mm BOX 25 Add to wishlist
DP10125F 10mm 125mm Countersunk Gold Passivated 10mm BOX 25 Add to wishlist
DP12100SS 12mm 100mm Hex Head Stainless Steel 12mm BOX 20 Add to wishlist
DP16140GH 16mm 140mm Hex Head Galvanised 16mm BOX 10 Add to wishlist
466075 10mm 45mm Hex Head Stainless Steel 10mm Card 2 Add to wishlist
465863 10mm 75mm Hex Head Stainless Steel 10mm Card 2 Add to wishlist
465924 12mm 60mm Hex Head Stainless Steel 12mm Card 2 Add to wishlist
465771 8mm 40mm Hex Head Stainless Steel 8mm Card 2 Add to wishlist
732064 8mm 45mm Hex Head Gold Passivated 8mm Card 2 Add to wishlist
R910050 10mm 50mm Hex Head Gold Passivated 10mm --- 100 Add to wishlist
R910075 10mm 75mm Hex Head Gold Passivated 10mm Bucket 100 Add to wishlist
R910100 10mm 100mm Hex Head Gold Passivated 10mm Bucket 100 Add to wishlist
465474 10mm 100mm Hex Head Gold Passivated 10mm Card 2 Add to wishlist
465894 10mm 100mm Hex Head Stainless Steel 10mm Card 2 Add to wishlist
465412 10mm 50mm Hex Head Gold Passivated 10mm Card 2 Add to wishlist
465832 10mm 50mm Hex Head Stainless Steel 10mm Card 2 Add to wishlist
465443 10mm 75mm Hex Head Gold Passivated 10mm Card 2 Add to wishlist
465566 12mm 100mm Hex Head Gold Passivated 12mm Card 2 Add to wishlist
465504 12mm 60mm Hex Head Gold Passivated 12mm Card 2 Add to wishlist
465535 12mm 70mm Hex Head Gold Passivated 12mm Card 2 Add to wishlist
465658 6mm 100mm Countersunk Gold Passivated 6mm Card 2 Add to wishlist
465269 6mm 40mm Hex Head Gold Passivated 6mm Card 4 Add to wishlist
465719 6mm 40mm Hex Head Stainless Steel 6mm Card 2 Add to wishlist
465689 6mm 55mm Round Head Gold Passivated 6mm Card 4 Add to wishlist
465290 6mm 60mm Hex Head Gold Passivated 6mm Card 4 Add to wishlist
465597 6mm 60mm Countersunk Gold Passivated 6mm Card 4 Add to wishlist
465627 6mm 75mm Countersunk Gold Passivated 6mm Card 2 Add to wishlist
465320 8mm 40mm Hex Head Gold Passivated 8mm Card 4 Add to wishlist
465351 8mm 65mm Hex Head Gold Passivated 8mm Card 2 Add to wishlist
default-thumbnail DP06040SS 6mm 40mm Hex Head Stainless Steel 6mm BOX 100 Add to wishlist
default-thumbnail DP08065SS 8mm 65mm Hex Head Stainless Steel 8mm BOX 50 Add to wishlist
default-thumbnail 9057 10mm 45mm Flush Head Gold Passivated 10mm Card 2 Add to wishlist
default-thumbnail 9064 10mm 80mm Flush Head Gold Passivated 10mm Card 2 Add to wishlist
default-thumbnail 9040 8mm 45mm Flush Head Gold Passivated 8mm Card 4 Add to wishlist
R710413 8mm 45mm Hex Head Gold Passivated 8mm Card 2 Add to wishlist
R710017 6mm 34mm Countersunk Gold Passivated 6mm Card 4 Add to wishlist
R710154 6mm 26mm Hex Head Gold Passivated 6mm Card 4 Add to wishlist
default-thumbnail DP08045H 8mm 45mm Flush Head Gold Passivated 8mm BOX 100 Add to wishlist
default-thumbnail DP06060SS 6mm 60mm Hex Head Stainless Steel 6mm BOX 100 Add to wishlist
Features & Benefits
  1. The DynaBolt™ Plus patented expansion sleeve closes gaps of up to 5mm, pulling down on the fixture to induce clamp load and provide improved security.
  2. The DynaBolt™ Plus is a fully assembled through-fixture anchor. Therefore, assembly, marking out and re-positioning of fixtures is eliminated, making installation fast and easy.
  3. The choice of multiple head styles makes the DynaBolt™ Plus a versatile anchor for a variety of applications.
