Coach Screws – ITW Proline
0

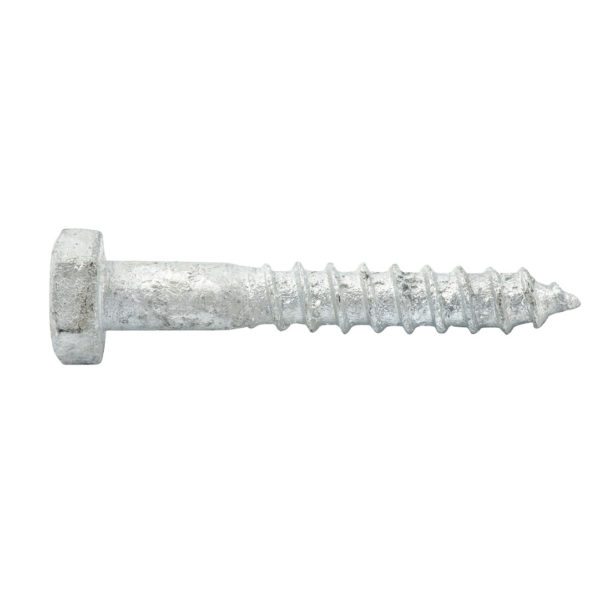

Zenith coach screws have a hexagonal head for a spanner to grip during installation. Feature a wood screw-type thread for timber. Available in metric and imperial/BSW thread styles, as well as 4 finishes: hot-dipped galvanised; Tech-Shield™ (for treated pine); zinc-plated; and stainless steel 304/316.

Contact your preferred store for product availability
Specifications
Image SKU Action
BGS12100 Metric M12 100mm Hot Dipped Galvanised 12 Add to wishlist
BTS08100 Metric M8 100mm Tech-Shield™ 25 Add to wishlist
BUA0060 Metric M6 60mm Hot Dipped Galvanised 50 Add to wishlist
BGS10100 Metric M10 100mm Hot Dipped Galvanised 25 Add to wishlist
BGS12200 Metric M12 200mm Hot Dipped Galvanised 12 Add to wishlist
BTS10100 Metric M10 100mm Tech-Shield™ 25 Add to wishlist
BTS12100 Metric M12 100mm Tech-Shield™ 12 Add to wishlist
BUA0025 Metric M6 25mm Hot Dipped Galvanised 50 Add to wishlist
BUA0040 Metric M6 40mm Hot Dipped Galvanised 50 Add to wishlist
BUA0050 Metric M6 50mm Hot Dipped Galvanised 50 Add to wishlist
BUA0075 Metric M6 75mm Hot Dipped Galvanised 50 Add to wishlist
BUA0090 Metric M6 90mm Hot Dipped Galvanised 50 Add to wishlist
BUA0100 Metric M6 100mm Hot Dipped Galvanised 50 Add to wishlist
BUB0040 Metric M8 40mm Hot Dipped Galvanised 50 Add to wishlist
BUB0050 Metric M8 50mm Hot Dipped Galvanised 50 Add to wishlist
BUB0060 Metric M8 60mm Hot Dipped Galvanised 50 Add to wishlist
BUB0075 Metric M8 75mm Hot Dipped Galvanised 50 Add to wishlist
BUB0090 Metric M8 90mm Hot Dipped Galvanised 50 Add to wishlist
BUB0120 Metric M8 120mm Hot Dipped Galvanised 50 Add to wishlist
BUB0130 Metric M8 130mm Hot Dipped Galvanised 50 Add to wishlist
BUC0040 Metric M10 40mm Hot Dipped Galvanised 50 Add to wishlist
BUC0050 Metric M10 50mm Hot Dipped Galvanised 50 Add to wishlist
BUC0060 Metric M10 60mm Hot Dipped Galvanised 50 Add to wishlist
BUC0075 Metric M10 75mm Hot Dipped Galvanised 50 Add to wishlist
BUC0090 Metric M10 90mm Hot Dipped Galvanised 50 Add to wishlist
BUC0100 Metric M10 100mm Hot Dipped Galvanised 50 Add to wishlist
BUC0130 Metric M10 130mm Hot Dipped Galvanised 50 Add to wishlist
BUC0150 Metric M10 150mm Hot Dipped Galvanised 50 Add to wishlist
BUD0050 Metric M12 50mm Hot Dipped Galvanised 25 Add to wishlist
BUD0075 Metric M12 75mm Hot Dipped Galvanised 25 Add to wishlist
BUD0100 Metric M12 100mm Hot Dipped Galvanised 25 Add to wishlist
BUD0130 Metric M12 130mm Hot Dipped Galvanised 25 Add to wishlist
BUD0200 Metric M12 200mm Hot Dipped Galvanised 25 Add to wishlist
BEA0040 Imperial 1/4" 1-1/2" Zinc Plated 50 Add to wishlist
BEA0075 Imperial 1/4" 3" Zinc Plated 50 Add to wishlist
BEB0040 Imperial 5/16" 1-1/2" Zinc Plated 50 Add to wishlist
BEB0050 Imperial 5/16" 2" Zinc Plated 50 Add to wishlist
BEB0075 Imperial 5/16" 3" Zinc Plated 50 Add to wishlist
BEC0040 Imperial 3/8" 1-1/2" Zinc Plated 50 Add to wishlist
BEC0050 Imperial 3/8" 2" Zinc Plated 50 Add to wishlist
BEC0060 Imperial 3/8" 2-1/2" Zinc Plated 50 Add to wishlist
BEC0075 Imperial 3/8" 3" Zinc Plated 50 Add to wishlist
BEC0100 Imperial 3/8" 4" Zinc Plated 50 Add to wishlist
BUB0100 Metric M8 100mm Hot Dipped Galvanised 50 Add to wishlist
BUD0150 Metric M12 150mm Hot Dipped Galvanised 25 Add to wishlist
BUG7050 Metric M8 50mm Tech-Shield™ 5 Add to wishlist
BUG7075 Metric M8 75mm Tech-Shield™ 5 Add to wishlist
BUG7100 Metric M8 100mm Tech-Shield™ 5 Add to wishlist
BUG7130 Metric M8 130mm Tech-Shield™ 4 Add to wishlist
BGS08100 Metric M8 100mm Hot Dipped Galvanised 25 Add to wishlist
BSS08100 Metric M8 100mm Stainless Steel 304 12 Add to wishlist
BSS10100 Metric M10 100mm Stainless Steel 304 12 Add to wishlist
BSS12100 Metric M12 100mm Stainless Steel 304 12 Add to wishlist
BUG0100 Metric M8 100mm Hot Dipped Galvanised 5 Add to wishlist
BUG9050 Metric M8 50mm Stainless Steel 304 5 Add to wishlist
BUG9075 Metric M8 75mm Stainless Steel 304 5 Add to wishlist
BUG9100 Metric M8 100mm Stainless Steel 304 4 Add to wishlist
BUG9130 Metric M8 130mm Stainless Steel 304 3 Add to wishlist
BUH7040 Metric M10 40mm Tech-Shield™ 4 Add to wishlist
BUH7050 Metric M10 50mm Tech-Shield™ 4 Add to wishlist
BUH7075 Metric M10 75mm Tech-Shield™ 4 Add to wishlist
BUH7100 Metric M10 100mm Tech-Shield™ 4 Add to wishlist
BUH7130 Metric M10 130mm Tech-Shield™ 4 Add to wishlist
BUH7150 Metric M10 150mm Tech-Shield™ 4 Add to wishlist
BUH9050 Metric M10 50mm Stainless Steel 304 3 Add to wishlist
BUH9100 Metric M10 100mm Stainless Steel 304 2 Add to wishlist
BUH9130 Metric M10 130mm Stainless Steel 304 2 Add to wishlist
BUH9150 Metric M10 150mm Stainless Steel 304 2 Add to wishlist
default-thumbnail BTS00875 Metric M8 75mm Tech-Shield™ 25 Add to wishlist
default-thumbnail BTS08130 Metric M8 130mm Tech-Shield™ 25 Add to wishlist
default-thumbnail BUC0150S16 Metric M10 150mm Stainless Steel 316 25 Add to wishlist
default-thumbnail BUC0120 Metric M10 100mm Hot Dipped Galvanised 50 Add to wishlist
default-thumbnail BUC0180 Metric M10 150mm Hot Dipped Galvanised 50 Add to wishlist
default-thumbnail BUD0120 Metric M12 120mm Hot Dipped Galvanised 25 Add to wishlist
default-thumbnail BUD0180 Metric M12 180mm Hot Dipped Galvanised 25 Add to wishlist
default-thumbnail BUE0100 Metric M12 100mm Hot Dipped Galvanised 25 Add to wishlist
default-thumbnail BEB0100 Imperial 5/16" 4" Zinc Plated 50 Add to wishlist
default-thumbnail BGS00625 Metric M6 25mm Hot Dipped Galvanised 25 Add to wishlist
default-thumbnail BGS00640 Metric M6 40mm Hot Dipped Galvanised 25 Add to wishlist
default-thumbnail BGS00650 Metric M6 50mm Hot Dipped Galvanised 25 Add to wishlist
default-thumbnail BGS00665 Metric M6 65mm Hot Dipped Galvanised 25 Add to wishlist
default-thumbnail BGS00675 Metric M6 75mm Hot Dipped Galvanised 25 Add to wishlist
default-thumbnail BGS00690 Metric M6 90mm Hot Dipped Galvanised 25 Add to wishlist
default-thumbnail BGS00840 Metric M8 40mm Hot Dipped Galvanised 25 Add to wishlist
default-thumbnail BGS00850 Metric M8 50mm Hot Dipped Galvanised 25 Add to wishlist
default-thumbnail BGS00860 Metric M8 60mm Hot Dipped Galvanised 25 Add to wishlist
default-thumbnail BGS00875 Metric M8 75mm Hot Dipped Galvanised 25 Add to wishlist
default-thumbnail BGS00890 Metric M8 90mm Hot Dipped Galvanised 25 Add to wishlist
default-thumbnail BGS01040 Metric M10 40mm Hot Dipped Galvanised 25 Add to wishlist
default-thumbnail BGS01050 Metric M10 50mm Hot Dipped Galvanised 25 Add to wishlist
default-thumbnail BGS01060 Metric M10 60mm Hot Dipped Galvanised 25 Add to wishlist
default-thumbnail BGS01075 Metric M10 75mm Hot Dipped Galvanised 25 Add to wishlist
default-thumbnail BGS01090 Metric M10 90mm Hot Dipped Galvanised 25 Add to wishlist
default-thumbnail BGS01250 Metric M12 50mm Hot Dipped Galvanised 12 Add to wishlist
default-thumbnail BGS01265 Metric M12 60mm Hot Dipped Galvanised 12 Add to wishlist
default-thumbnail BGS01275 Metric M12 75mm Hot Dipped Galvanised 12 Add to wishlist
default-thumbnail BGS06100 Metric M6 100mm Hot Dipped Galvanised 25 Add to wishlist
default-thumbnail BGS08120 Metric M8 120mm Hot Dipped Galvanised 25 Add to wishlist
default-thumbnail BGS08130 Metric M8 130mm Hot Dipped Galvanised 25 Add to wishlist
default-thumbnail BGS10130 Metric M10 130mm Hot Dipped Galvanised 25 Add to wishlist
default-thumbnail BGS10150 Metric M10 150mm Hot Dipped Galvanised 25 Add to wishlist
default-thumbnail BGS12130 Metric M12 130mm Hot Dipped Galvanised 12 Add to wishlist
default-thumbnail BGS12150 Metric M12 150mm Hot Dipped Galvanised 12 Add to wishlist
default-thumbnail BSS00850 Metric M8 50mm Stainless Steel 304 12 Add to wishlist
default-thumbnail BSS00875 Metric M8 75mm Stainless Steel 304 12 Add to wishlist
default-thumbnail BSS01050 Metric M10 50mm Stainless Steel 304 12 Add to wishlist
default-thumbnail BSS01075 Metric M10 75mm Stainless Steel 304 12 Add to wishlist
default-thumbnail BSS01250 Metric M12 50mm Stainless Steel 304 12 Add to wishlist
default-thumbnail BSS01275 Metric M12 75mm Stainless Steel 304 12 Add to wishlist
default-thumbnail BSS08130 Metric M8 130mm Stainless Steel 304 12 Add to wishlist
default-thumbnail BSS10130 Metric M10 130mm Stainless Steel 304 12 Add to wishlist
default-thumbnail BSS10150 Metric M10 150mm Stainless Steel 304 12 Add to wishlist
default-thumbnail BSS12130 Metric M12 130mm Stainless Steel 304 12 Add to wishlist
default-thumbnail BSS12150 Metric M12 150mm Stainless Steel 304 12 Add to wishlist
default-thumbnail BTS01040 Metric M10 40mm Tech-Shield™ 25 Add to wishlist
default-thumbnail BTS01050 Metric M10 50mm Tech-Shield™ 25 Add to wishlist
default-thumbnail BTS01075 Metric M10 75mm Tech-Shield™ 25 Add to wishlist
default-thumbnail BTS01250 Metric M12 50mm Tech-Shield™ 12 Add to wishlist
default-thumbnail BTS01275 Metric M12 75mm Tech-Shield™ 12 Add to wishlist
default-thumbnail BTS10130 Metric M10 130mm Tech-Shield™ 25 Add to wishlist
default-thumbnail BTS10150 Metric M10 150mm Tech-Shield™ 25 Add to wishlist
default-thumbnail BTS12150 Metric M12 150mm Tech-Shield™ 12 Add to wishlist
default-thumbnail BTS12200 Metric M12 200mm Tech-Shield™ 12 Add to wishlist
default-thumbnail BUC0100S16 Metric M10 100mm Stainless Steel 316 25 Add to wishlist
BUG0050 Metric M8 50mm Hot Dipped Galvanised 5 Add to wishlist
default-thumbnail BUG0075 Metric M8 75mm Hot Dipped Galvanised 5 Add to wishlist
default-thumbnail BUG0130 Metric M8 130mm Hot Dipped Galvanised 4 Add to wishlist
default-thumbnail BUH0040 Metric M10 40mm Hot Dipped Galvanised 4 Add to wishlist
default-thumbnail BUH0050 Metric M10 50mm Hot Dipped Galvanised 4 Add to wishlist
default-thumbnail BUH0075 Metric M10 75mm Hot Dipped Galvanised 4 Add to wishlist
default-thumbnail BUH0100 Metric M10 100mm Hot Dipped Galvanised 4 Add to wishlist
default-thumbnail BUH0130 Metric M10 130mm Hot Dipped Galvanised 4 Add to wishlist
default-thumbnail BUH0150 Metric M10 150mm Hot Dipped Galvanised 4 Add to wishlist
default-thumbnail BUH9075 Metric M10 75mm Stainless Steel 304 3 Add to wishlist
default-thumbnail NBUB0150S16 Metric M8 150mm Stainless Steel 316 25 Add to wishlist
default-thumbnail NBUD0100S16 Metric M12 100mm Stainless Steel 316 25 Add to wishlist
default-thumbnail NBUD0120S16 Metric M12 120mm Stainless Steel 316 25 Add to wishlist
default-thumbnail NBUD0150S16 Metric M12 150mm Stainless Steel 316 25 Add to wishlist
default-thumbnail NBUD0180S16 Metric M12 180mm Stainless Steel 316 25 Add to wishlist
default-thumbnail NBUD0200S16 Metric M12 200mm Stainless Steel 316 25 Add to wishlist
default-thumbnail BUD0040 Metric M12 40mm Hot Dipped Galvanised 25 Add to wishlist
default-thumbnail BUD0060 Metric M12 60mm Hot Dipped Galvanised 25 Add to wishlist
default-thumbnail BUD0090 Metric M12 75mm Hot Dipped Galvanised 25 Add to wishlist
default-thumbnail BUC0050S16 Metric M10 50mm Stainless Steel 316 25 Add to wishlist
default-thumbnail BUC0070S16 Metric M10 70mm Stainless Steel 316 25 Add to wishlist
default-thumbnail NBUD0050S16 Metric M12 50mm Stainless Steel 316 25 Add to wishlist
default-thumbnail NBUD0070S16 Metric M12 70mm Stainless Steel 316 25 Add to wishlist
Relevant Applications
  1. Fastening timber-to-timber and metal-to-timber.
  2. Sheltered structural and external non-structural applications that are exposed to the outside elements which are more susceptible to corrosion.
Features & Benefits
  1. Hot-dipped galvanised finish provides high protection against the outside elements, minimising corrosion.
  2. Made to Standard AS/NZS 1393:1996 and Property Class 4.6.
  3. Hex head allows for increased "clamping pressure" and tightening with sockets, wrenches and spanners.
  4. "Gimlet point" allows for easier penetration of timber.
